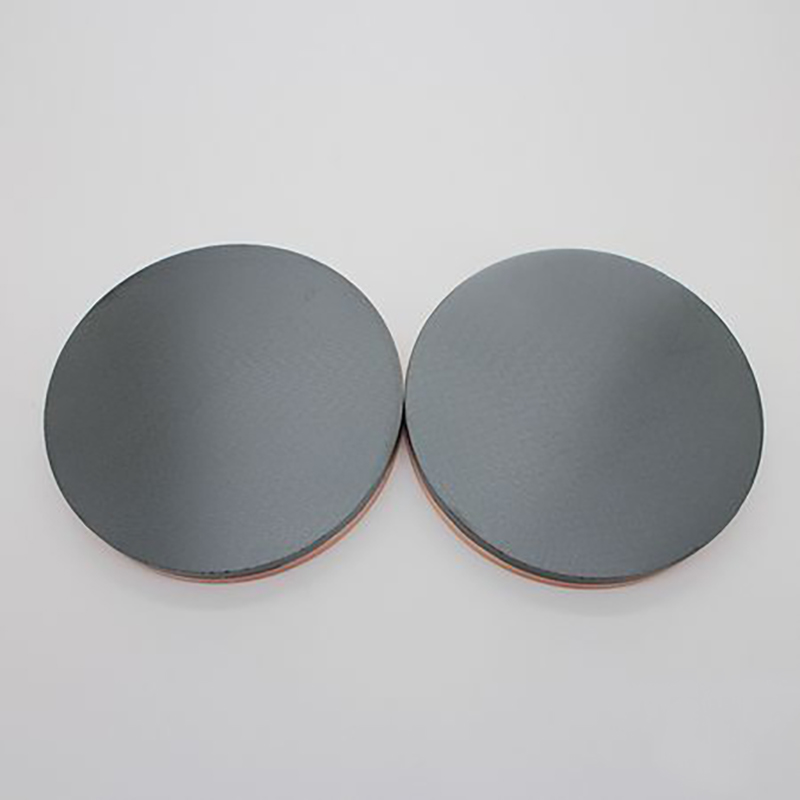

Aluminum-Doped Zinc Oxide (AZO) Sputtering Target (ZnO : Al₂O₃ = 98 : 2 wt%)

Description

Aluminum-Doped Zinc Oxide (AZO) Sputtering Targets are high-density ceramic targets composed of 98 wt% Zinc Oxide (ZnO) and 2 wt% Aluminum Oxide (Al₂O₃). By introducing a small amount of aluminum into the ZnO crystal lattice, AZO exhibits significantly enhanced electrical conductivity while maintaining excellent optical transparency across the visible spectrum.

As one of the most widely used Transparent Conductive Oxide (TCO) materials, AZO has become an attractive alternative to Indium Tin Oxide (ITO) due to its lower material cost, excellent chemical stability, environmental friendliness, and the absence of scarce indium. It is widely employed in magnetron sputtering systems for depositing transparent conductive thin films used in displays, photovoltaic devices, optoelectronics, and advanced electronic components.

Tinsan Materials manufactures high-density AZO sputtering targets using carefully selected high-purity raw materials and advanced ceramic processing technology. Each target is engineered to deliver stable sputtering performance, low particle generation, uniform erosion, and high-quality thin-film deposition for both research and industrial production.

Key Features

High-purity ceramic target with excellent chemical composition consistency
ZnO : Al₂O₃ = 98 : 2 wt% standard composition
High density for stable sputtering performance
Excellent electrical conductivity and optical transparency
Uniform grain structure for consistent film deposition
Low particle generation during sputtering
High utilization efficiency and uniform erosion profile
Suitable for both RF and DC magnetron sputtering systems
Indium-free transparent conductive oxide material
Custom sizes, purity levels, and backing plate bonding available

Chemical Composition

Component	Content
Zinc Oxide (ZnO)	98 wt%
Aluminum Oxide (Al₂O₃)	2 wt%

Other aluminum doping ratios, such as 99:1, 97:3, and customized compositions, are also available upon request to meet different electrical and optical performance requirements.

Material Properties

Material	Aluminum-Doped Zinc Oxide (AZO)
Chemical Formula	ZnO : Al₂O₃ = 98 : 2 wt%
Appearance	Light Gray Ceramic
Purity	99.9%, 99.99%
Sputtering Type	Ceramic Target
Electrical Conductivity	High
Optical Transparency	Excellent (Visible Region)
Thermal Stability	Excellent
Corrosion Resistance	Excellent
Compatible Sputtering	RF / DC Magnetron Sputtering

Advantages of AZO Compared with ITO

AZO has become one of the leading alternatives to Indium Tin Oxide (ITO) in transparent conductive coating applications.

AZO	ITO
Indium-Free	Contains Indium
Lower Material Cost	Higher Cost
Abundant Raw Materials	Limited Indium Resources
Excellent Optical Transparency	Excellent Optical Transparency
Good Electrical Conductivity	Excellent Electrical Conductivity
Environmentally Friendly	Higher Resource Dependency
Excellent Thermal Stability	Good Thermal Stability

With increasing concerns over indium supply and production costs, AZO is increasingly adopted in large-area coatings and next-generation transparent conductive films.

Available Specifications

Tinsan Materials supplies both standard and custom AZO sputtering targets.

Standard Shapes

Round Targets
Rectangular Targets
Rotary Targets
Ring Targets
Custom Shapes

Available Sizes

1 inch
2 inch
3 inch
4 inch
6 inch
8 inch
Up to 300 mm diameter
Custom dimensions available

Optional Features

Bonded or Monolithic Targets
Copper Backing Plate
Stainless Steel Backing Plate
Precision Ground Surface
Edge Chamfering
Customer Drawing Manufacturing

Applications

AZO sputtering targets are widely used for depositing transparent conductive oxide films in numerous advanced technologies.

Transparent Conductive Films (TCO): High-transparency conductive coatings for various optoelectronic devices.
Thin-Film Solar Cells: Transparent electrodes for photovoltaic modules including CIGS and perovskite solar cells.
Flat Panel Displays: LCD displays, OLED displays, and touch panel technologies.
Low-E Architectural Glass: Energy-saving window coatings with excellent optical performance.
Semiconductor Industry: Thin-film deposition for electronic and semiconductor devices.
Optical Coatings: Anti-reflection coatings and transparent conductive layers for optical components.
Thin Film Transistors (TFT): Active matrix display manufacturing.
Sensors and Functional Thin Films: Gas sensors, piezoelectric devices, and transparent electronics.

Compatible Deposition Methods

Our AZO sputtering targets are compatible with most commercial sputtering equipment, including:

RF Magnetron Sputtering
DC Magnetron Sputtering
Pulsed DC Sputtering
Reactive Sputtering Systems
High-Power Impulse Magnetron Sputtering (HiPIMS)

The high-density ceramic structure provides excellent plasma stability, uniform sputtering rates, and long target service life.

Custom Manufacturing

Tinsan Materials offers comprehensive customization services for AZO sputtering targets.

Available customization includes:

Customized dimensions
Special shapes
Different Al₂O₃ doping ratios
Higher purity grades
Bonded backing plates
Customer drawings
Special surface finish
OEM manufacturing

Our engineering team works closely with customers to develop sputtering targets optimized for specific deposition systems and application requirements.

Why Choose Tinsan Materials

Tinsan Materials is committed to supplying high-quality sputtering targets for research laboratories, universities, and industrial thin-film manufacturers worldwide.

Our Advantages

High-purity raw materials
High-density ceramic processing
Stable sputtering performance
Uniform microstructure
Strict quality control
Precision CNC machining
Custom manufacturing capabilities
Competitive factory pricing
Fast production lead time
Worldwide shipping and technical support

Frequently Asked Questions (FAQ)

Q: What is an AZO sputtering target?

A: An AZO sputtering target is a ceramic target made of zinc oxide doped with aluminum oxide. It is widely used to deposit transparent conductive oxide (TCO) thin films by magnetron sputtering.

Q: Why is Al₂O₃ added to ZnO?

A: Aluminum acts as a donor dopant in the ZnO crystal lattice, increasing the material’s electrical conductivity while maintaining high optical transparency.

Q: Why choose AZO instead of ITO?

A: AZO is indium-free, more cost-effective, environmentally friendly, and offers excellent transparency and good conductivity, making it an attractive alternative to ITO for many applications.

Q: Can AZO sputtering targets be used with DC sputtering?

Yes. High-density AZO ceramic targets are suitable for both RF and DC magnetron sputtering, depending on the sputtering system and process conditions.

Q: What purity levels are available?

A: Standard purity grades include 99.9% and 99.99%. Higher purity materials may be available upon request.

Q: Can you manufacture custom AZO sputtering targets?

A: Yes. We provide customized dimensions, shapes, bonding options, purity levels, and Al₂O₃ doping ratios according to customer specifications.
