Bismuth Silicate (BSO) Single Crystal Substrates

Description

Bismuth Silicate (Bi₁₂SiO₂₀, BSO) single crystal substrates are highly versatile electro-optic and photorefractive materials with cubic symmetry. They feature high photoconductivity, significant electro-optic coefficients, and excellent photorefractive properties, making them ideal for applications such as holography, dynamic optical data storage, four-wave mixing, and real-time image processing. Their stable physical properties and broad transparency range also make them attractive for optoelectronic and laser-related research.

Key Features and Properties:

• High Electro-optic and Photorefractive Properties: Suitable for real-time holography and optical data processing.
• Cubic Crystal Structure: Isotropic optical properties, facilitating easier device integration.
• High Photoconductivity: Enhances photorefractive response and device efficiency.
• Broad Transparency Range: From ~450 nm to 7000 nm.
• High Optical Damage Threshold: Suitable for high-intensity light exposure.
• Excellent Thermal and Chemical Stability: Reliable under varied operating conditions.

Typical Applications:

• Dynamic holography and real-time holographic displays
• Optical phase conjugation and four-wave mixing
• Optical data storage and retrieval
• Beam coupling and photorefractive two-wave mixing
• Optical computing and image processing
• Research in nonlinear optics and optoelectronic devices

Specifications:

Chemical Formula	Bi₁₂SiO₂₀
Crystal Structure	Cubic
Space Group	I23
Lattice Constant	a = 10.24 Å
Transparency Range	~450 nm – 7000 nm
Electro-optic Coefficient r₄₁	~3.8 × 10⁻¹² m/V
Dielectric Constant	~56 (at 1 MHz)
Photoconductivity	High
Refractive Index (at 633 nm)	~2.54
Hardness	~5 (Mohs)
Typical Sizes	10×10 mm², 15×15 mm², 20×20 mm²
Surface Quality	10/5 scratch/dig
Surface Flatness	<λ/8 @ 632.8 nm
Orientation Accuracy	±0.5° standard (±0.1° available on request)
Coating Options	Bare, AR coated

Material Properties and Crystal Structure:

• Chemical Formula: Bi₁₂SiO₂₀
• Crystal Structure: Cubic
• Space Group: I23
• Lattice Constant: a = 10.24 Å
• Transparency Range: ~450 nm – 7000 nm
• Electro-optic Coefficient (r₄₁): ~3.8 × 10⁻¹² m/V
• Photoconductivity: High, enhancing nonlinear optical responses
• Dielectric Constant: ~56 at 1 MHz
• Refractive Index: ~2.54 at 633 nm
• Hardness: ~5 (Mohs scale)

Standard Product Sizes and Availability:

• Standard dimensions: 10×10 mm², 15×15 mm², 20×20 mm²
• Thickness: 0.5 mm, 1 mm, 2 mm (customizable)
• Standard orientations: (001), (110), (111)
• Surface quality: 10/5 scratch/dig (MIL-PRF-13830B)
• Surface flatness: <λ/8 at 632.8 nm
• Coatings: Bare polished or custom AR coatings available
• Orientation precision: ±0.5°
• Other sizes and specifications available upon request

Customization Options:

• Custom dimensions, thicknesses, and crystal orientations
• High-precision orientation adjustment (±0.1° available)
• Double-side polishing, single-side polishing, or fine lapping
• Custom anti-reflection coatings optimized for application wavelengths
• Wafers or disks for device integration
• Special photorefractive quality grades for advanced research

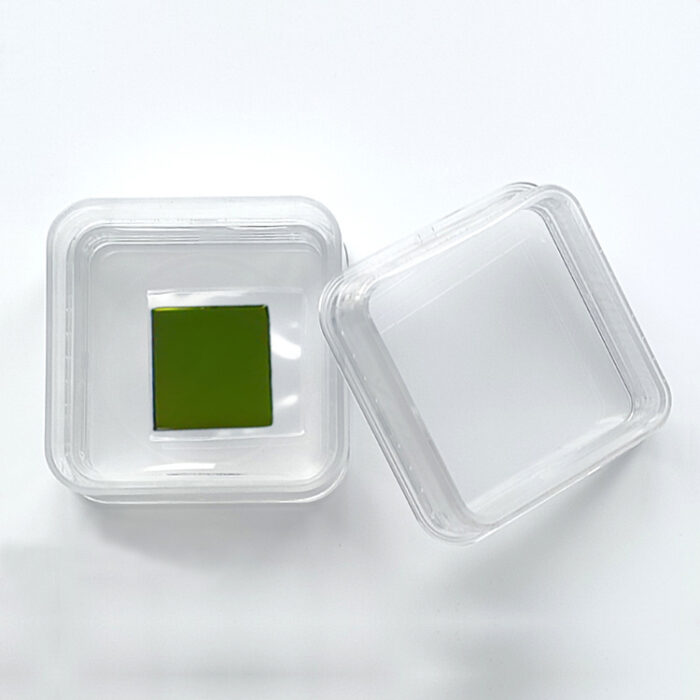

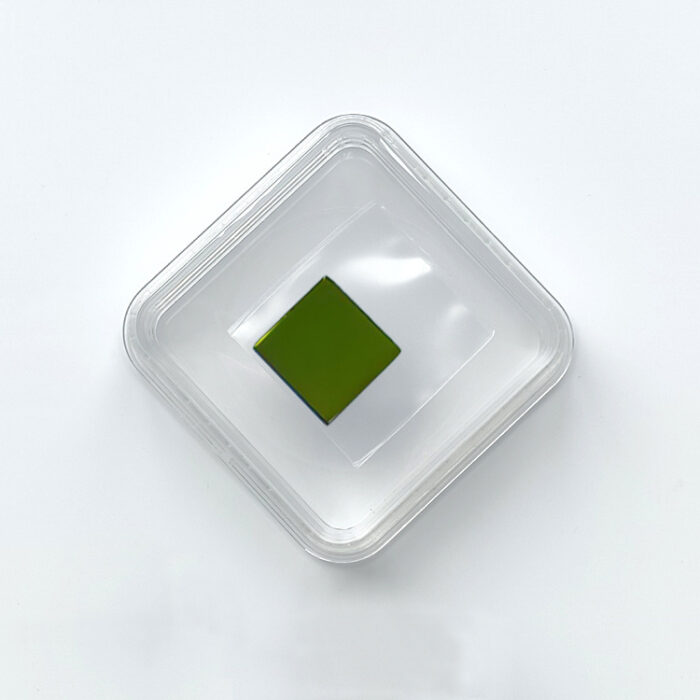

Packaging and Delivery:

• Class 100 cleanroom-level packaging to prevent contamination
• Vacuum-sealed and moisture-resistant packaging
• Protective carriers or cassettes for wafer shipments
• Certificate of Conformance (COC) and material test reports included

Why Choose Our Bismuth Silicate (BSO) Single Crystal Substrates?

• Premium-grade BSO crystals grown with strict quality control for optical homogeneity
• Advanced fabrication and polishing facilities ensuring superior surface quality
• Flexibility to deliver custom specifications tailored to your application needs
• Comprehensive pre-sale and after-sale technical support
• Proven track record in supplying BSO substrates to leading universities and research institutions worldwide

Ordering & Contact Information:

We offer flexible MOQ (Minimum Order Quantity) and competitive pricing. Our substrates are packaged in Class 100 cleanroom environments and shipped worldwide. For custom orders or technical inquiries, please contact us for a detailed consultation!
