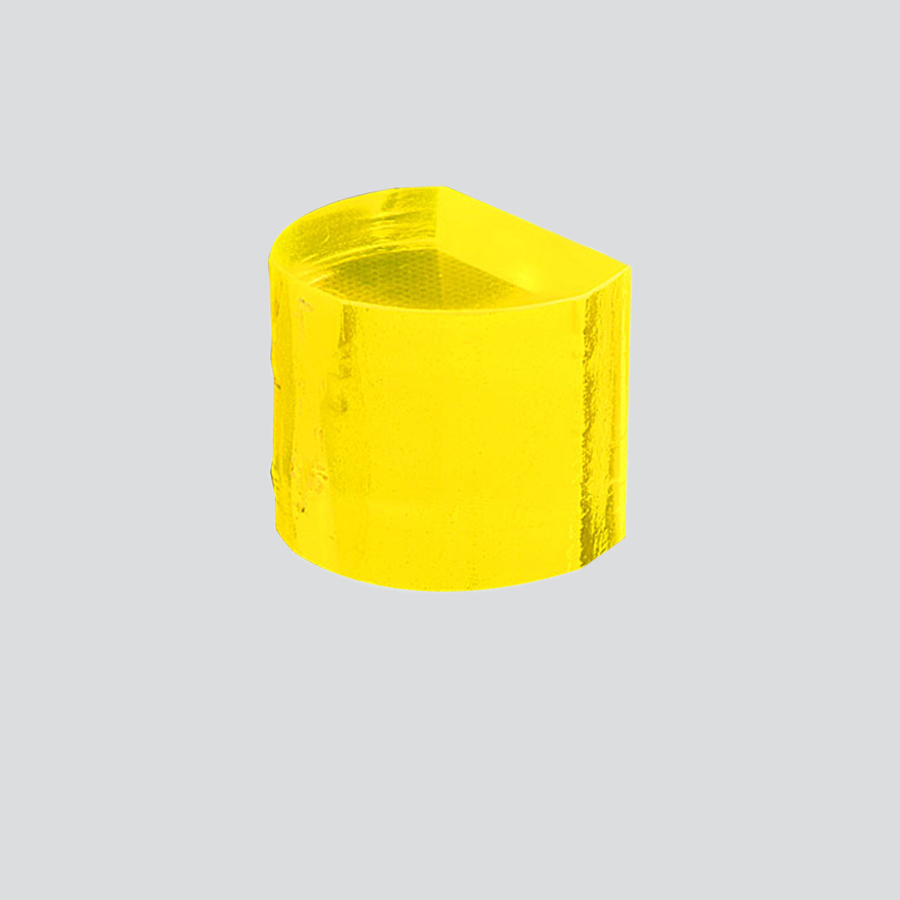

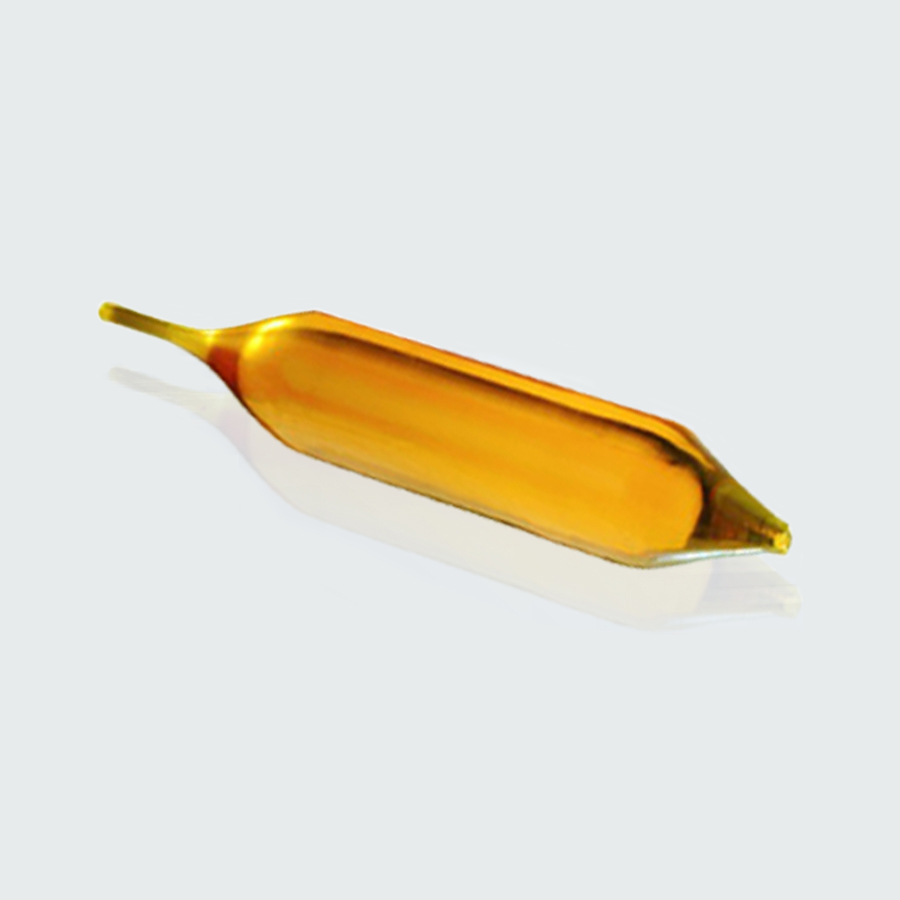

Nd:Ce:YAG Crystal (Neodymium, Cerium Co-doped Yttrium Aluminum Garnet)
- High efficiency lasing at 1064 nm
- Enhanced pump absorption under broadband light (flashlamp)
- Ce³⁺ doping improves resistance to UV-induced damage
- Low thermal lensing and high optical quality
- Supports high-energy Q-switched operation
- High chemical and mechanical stability
- Long fluorescence lifetime and excellent beam quality
- Transparent from 0.25 μm to 5.0 μm
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Nd:Ce:YAG is a co-doped laser crystal combining the lasing properties of neodymium (Nd³⁺) with the UV absorption benefits of cerium (Ce³⁺) in a YAG (Y₃Al₅O₁₂) host matrix. It emits at the strong 1064 nm wavelength, making it ideal for high-power solid-state laser systems. The addition of Ce³⁺ ions enhances UV resistance and acts as a sensitizer, increasing the pump absorption efficiency of Nd³⁺ ions, particularly under flashlamp pumping.
This crystal is widely used in medical, military, industrial, and scientific laser applications, especially where high-energy pulsed operation is required. Its superior optical homogeneity and improved damage threshold make it a robust choice for demanding environments.
Key Features
- High efficiency lasing at 1064 nm
- Enhanced pump absorption under broadband light (flashlamp)
- Ce³⁺ doping improves resistance to UV-induced damage
- Low thermal lensing and high optical quality
- Supports high-energy Q-switched operation
- High chemical and mechanical stability
- Long fluorescence lifetime and excellent beam quality
- Transparent from 0.25 μm to 5.0 μm
Applications
- Industrial Lasers: Precision cutting, drilling, welding, and marking of metals and ceramics
- Medical Lasers: Dermatology, ophthalmology, and surgery systems
- Military and Aerospace: Rangefinders, target designators, and laser-guided systems
- Scientific Research: High-peak-power laser development, nonlinear optics
Technical Specifications
| Chemical Formula | Nd:Ce:Y₃Al₅O₁₂ |
| Crystal Structure | Cubic, space group Ia3d (Garnet type) |
| Lasing Wavelength | 1064 nm |
| Pump Wavelengths | 808 nm (diode), broadband (flashlamp) |
| Refractive Index | ~1.82 @ 1064 nm |
| Fluorescence Lifetime | ~230 μs |
| Thermal Conductivity | ~14 W/m·K |
| Density | 4.56 g/cm³ |
| Mohs Hardness | 8.25 |
| Transparency Range | 0.25 μm – 5.0 μm |

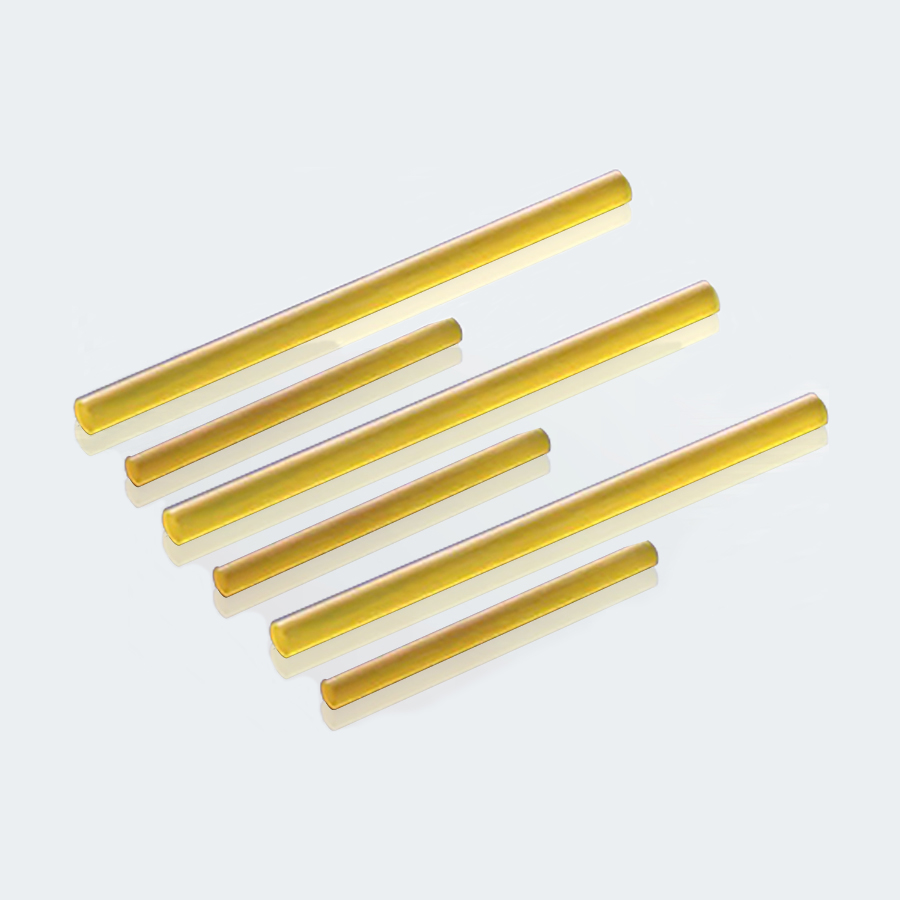

| Typical Sizes | φ3-15 mm; Length: 30-100 mm (customizable) |
| Orientation | <111> or <100> |
| Surface Finish | Laser-grade polished (10/5 S/D typical) |
Customization Options
Tinsan Materials offers Nd:Ce:YAG crystals with precise control over dopant levels and geometric parameters:
- Doping Levels: Nd³⁺ typically at 1.0 at.%, Ce³⁺ at 0.05–0.1 at.%
- Dimensions: Diameter from 3 mm to 15 mm; length up to 100 mm or more
- Cut Orientation: <111> or <100> depending on thermal and optical system design
- End Faces: Polished plano-plano, wedge, or angled for specific resonators
- AR Coatings: Custom coatings for 808 nm and 1064 nm wavelengths available
- Co-Doping Options: Additional doping possible depending on request
Technical Support
Our experienced technical team provides:
- Laser material selection consulting
- Guidance on cavity design and doping optimization
- Coating and integration support
- Post-sales technical assistance
Tinsan Materials partners with OEMs, researchers, and system integrators to provide performance-optimized crystal solutions.
Ordering & Contact Information
We offer flexible MOQ (Minimum Order Quantity), competitive pricing and global shipping. For custom orders or technical inquiries, please contact us for a detailed consultation!
